DC48V 24kw One Stop Rectifier System Intelligent Telecom Power Rack Mount
Product Overview of DC48V 24kw One Stop Rectifier System
The ET48400 is DC rack power system a 19-inch sub-rack power system produced by ESTEL, with 5U height compactdesign for critical applications of fiber and microwave transmission,access devices, switches, etc. Thesystem maximum power is 400A, with circuit breakers for AC input, batteries and loads.The cables arefront accessing with circuit breakers and busbar. It accepts 380VAC three-phase input and delivers a stable DC output adjustable between –43VDC to –58VDC, with a nominal operating point of –53.5VDC. Offering a maximum output capacity of 24kW, this system reliably supports high-demand installations while achieving power conversion efficiency exceeding 96%.
The DC distribution panel is equipped with 4*100A/1P battery circuit breakers and includes 2*scalable LLVD and a BLVD(Battery Low Voltage Disconnect) functionality for secure and flexible power management. System intelligence is provided by a dedicated controller featuring 3 analog sensor inputs, 8 digital status inputs, and 8 configurable dry-contact alarm relays. Remote monitoring and management are enabled via RS232/485 and SNMP interfaces, while an integrated LCD display allows for local status viewing and configuration.
AC Distribution of DC48V 24kw One Stop Rectifier System
-
Input mode: 380VAC three-phase, 3*63A/1P+N
-
Input frequency: 45–66Hz, rated value: 50Hz/60Hz
DC Distribution of DC48V 24kw One Stop Rectifier System
-
Output voltage: –43 ~ –58VDC, rated value: –53.5VDC
-
Maximum capacity:24kW(8*3kw, N+1 redundancy)
-
Battery breakers: 4*100A/1P
-
Load breakers:
-
LLVD*2: Used with distribution box
-
BLVD: 2*16A/1P+4*32A/1P
Rectifier of DC48V 24kw One Stop Rectifier System
-
Input voltage: 85VAC ~ 300VAC, rated 220VAC
-
Efficiency: >96%
-
Rated power: 3000W (176–300VAC)
-
Working temperature: –40℃ ~ +75℃ (full output below 50℃)
-
Dimension: 106.5mm(W) × 286mm(D) × 41.5mm(H) (1U/H)
-
Weight: ≤2kg
-
Cooling mode: Forced cooling
-
Power factor: ≥0.99
-
THD: ≤5%
-
DC output: –43 ~ –58VDC, rated –53.5VDC, maximum 55A
Controller of DC48V 24kw One Stop Rectifier System
-
Model: MC2600
-
Signal input: 3 AI (3 ambient temp), 8 DI
-
Alarm output: 8 dry contact
-
Communication port: RS232/485, SNMP
-
Display mode: LCD
Information of DC48V 24kw One Stop Rectifier System
|
System
|
Dimension |
482.6(W)*350.0(D)*5U(H) |
| Weight |
≤25kg (without rectifiers) |
| Cooling mode |
Natural cooling |
| Installation mode |
Installed on 19-inch rack |
| Cabling mode |
Top inlet and top outlet |
| Maintenance mode |
Front maintenance, support module grade change |
| Protection level |
IP20 |
Working Environment of DC48V 24kw One Stop Rectifier System
|
Environment
|
Operating
temperature |
-40℃ ~ +65℃ (full output below 50℃) |
| Storage temperature |
-40℃~+70℃ |
| Operating humidity |
5%~95%(non-condensing) |
| Altitude |
0~3000m(If the altitude is within the range of 2000m to 3000m, the maximum operating
temperature decreases by 1℃ as the altitude increases by 200m.)
|
Overview of DC48V 24kw One Stop Rectifier System

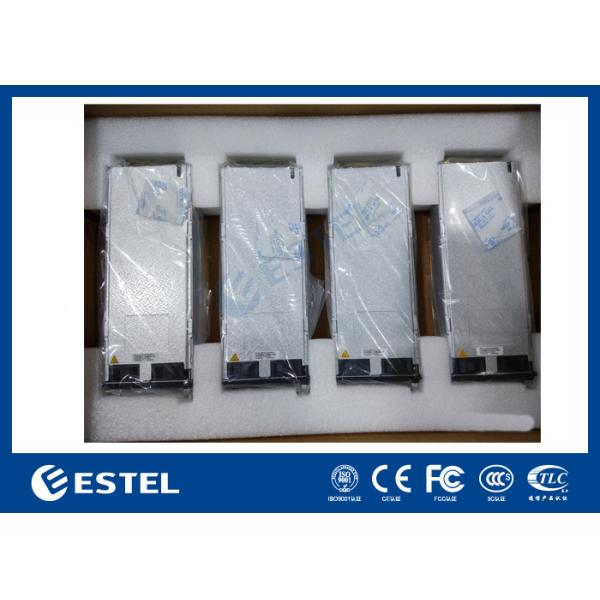

3000w Module of DC48V 24kw One Stop Rectifier System
